Steve Turner
•
July 27, 2011

Now, to document the heart of the BOSS 429 Project…building the BOSS 529 Engine.  This was made possible by Jon Kaase Racing developing the BOSS 429 Heads and Intake in 2010.   Jon made these heads to fit a BBF 460.  So, with a stroker crank, you can get to ~520 cu in.  With the cylinder bores cleaned up, I ended up with a 529 cu in engine.  Brent Lykins, co-owner of B2 Motorsports, LLC performed the engine build.

To start with, I order the Jon Kaase Racing BOSS 429 heads, intake, valve covers, valves, and rocker arms and had them dropped shipped to Brent, B2 Motorsports.  The pictures below highlight the various parts and build process.

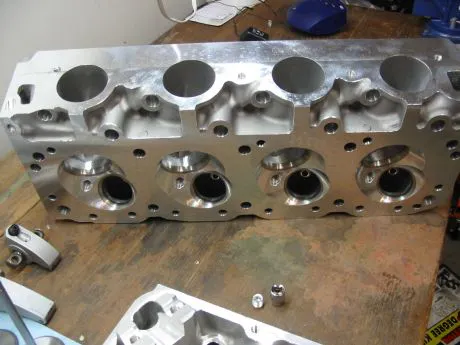

Jon Kaase Racing BOSS 429 Hemi Head.... it's massive!

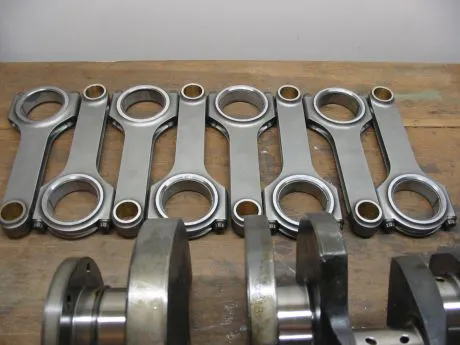

Here's the Forged H-Rods and Forged steel stroker crank being laid out for mockup. Then the Crank is off to the shop for cleanup and balancing.



To help with scale, just look at the size of the intake ports with Brent's hand in one.

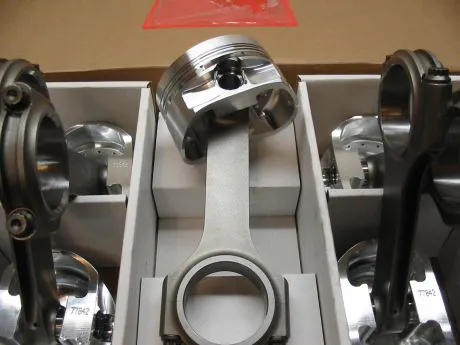

In this shot, the H-Rods are married up the the Diamond forged Pistons. The Diamond Pistons are a piece of art! Too bad theyr'e hidden in the engine.

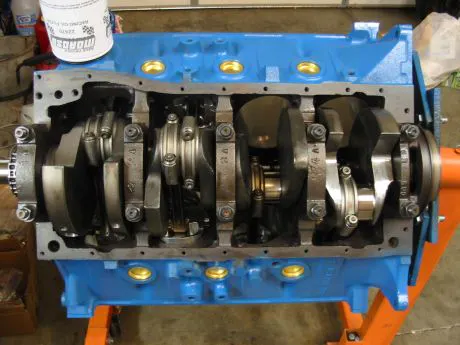

the lower assembly is in place


More on Page 2

Here, Brent is "Driving Home" one of the Diamond Forged Pistons and H-Rods to it's final place of rest.... or should I say "action"

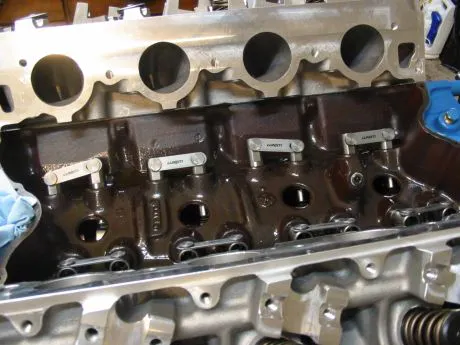

Now the focus in on the BOSS's top assembly

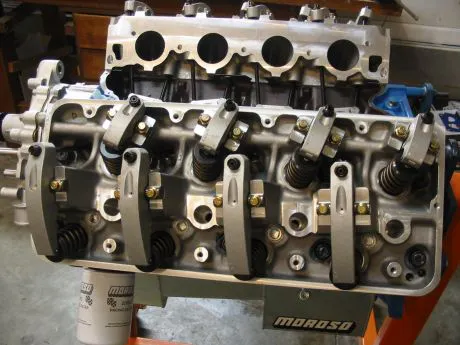

With both BOSS 429 heads installed, next comes the intake and valve covers

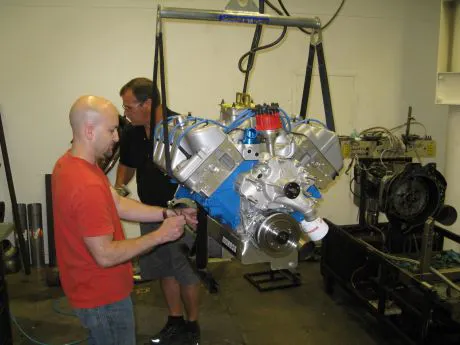

The completed engine ready for Dyno day. I met Brent at Jon Kaase's shop on July 5th for our Dyno day. Brent is preparing to load the engine onto Kaase's Dyno.


More on Page 3

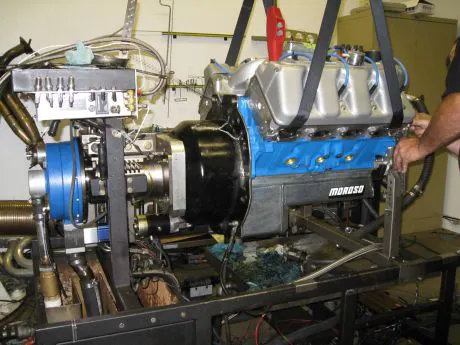

Getting close with the BOSS 529 strapped into the Dyno and about ready to be fired up.



We're off. The engine is running, warming up and being prepared for first hard pull





Jon Kaase himself is checking the numbers. He first complements Brent for building a fine engine, followed by the numbers. Jon's key note to use was.... with the pull RPM range of 3400 to 6100 RPM, "the enginge never dropped below 600 ft lbs of torque." That's insane power!!

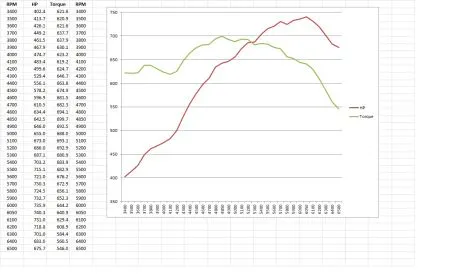

Here's the final results and the numbers are incredible. Peek Torque of 700 ft lbs @ 4850 RPM and 740.3 HP @ 6050 RPM. What a Monster!



Brent was drilled by Kaase and his team on the details of the build as they really liked what he did with this streetable BOSS 529 build and the power it made.  Jon Kaase then took us and his team to lunch while the engine cooled down.  Kaase and team contined with build questions to Brent.  It was obvious Brent “did good” on the BOSS 529 custom build!

It was a GREAT day!

Mark

Up next…. readying the car for suspension and engine install.

Links:

Jon Kasse Racing Engines

B2 Motorsports, LLC



Build parts list:

 Key Ingredients:
Item Part #

Durabond Cam Bearings F-30
Clevite Main Bearings MS1039V
Clevite Rod Bearings CB743HN
Lunati Forged Crankshaft
Scat 6.800″ H-beam Rods 6680022A
Diamond Forged Pistons Custom
Mahle Rings 4420MS
Ford Racing Timing Set M-6268-B429
Bullet Hydraulic Roller Cam HR298/358
Crank Spacer
Lunati Hydraulic Roller Lifters 72336LUN
Moroso Oil Pan 20620
Moroso Pickup 24509
Ford Racing SFI Harmonic Balancer M-6316-A460
Ford Racing HV Oil Pump/Driveshaft M-6600-A460
ARP Camshaft Bolt Custom 7/16NF
ARP Balancer Bolt 150-2501
Comp Cams Spring Locators 4776-16
Comp Cams Valve Springs 928-16
Comp Cams Valve Spring Retainers 1732-16
Comp Cams Valve Locks 613-16
Comp Cams Valve Spring Shims 4755
Viton Valve Seals 529-16
Felpro Rear Main Seal 2948
Felpro Head Gaskets Q1018
ARP Oil Pump Fasteners 150-6902
Trend Pushrods 5/16″, 7.800″ I, 9.550″ E
Mr. Gasket Intake Gasket 207G
Felpro Oil Pan Gasket FEL-OS30408C
Mr. Gasket Timing Cover Gasket 795G
Stainless Steel Fastener Kit SS460
New Timing Cover
MSD Pro Billet Distributor 8577
MSD Coil Bracket 8213
MSD Blaster 2 Coil 8202
Ford Racing Distributor Clamp M-12270-A302
Fuel Pump Block Off Plate 402035
Quick Fuel 1050 Dominator Carb
ARP Flywheel Bolts 100-2801
McLeod Flywheel 463222
Freeze Plugs/Paint 381-8018








 Other parts I bought from B2 Motorsports:
TKO 600 Transmission TCET-4617-SP
Quicktime Bellhousing RM-8010
McLeod RST Clutch 6911-07
McLeod Throw Out Bearing 16031
McLeod Clutch Fork 16932
ARP Pressure Plate Bolts 150-2201
