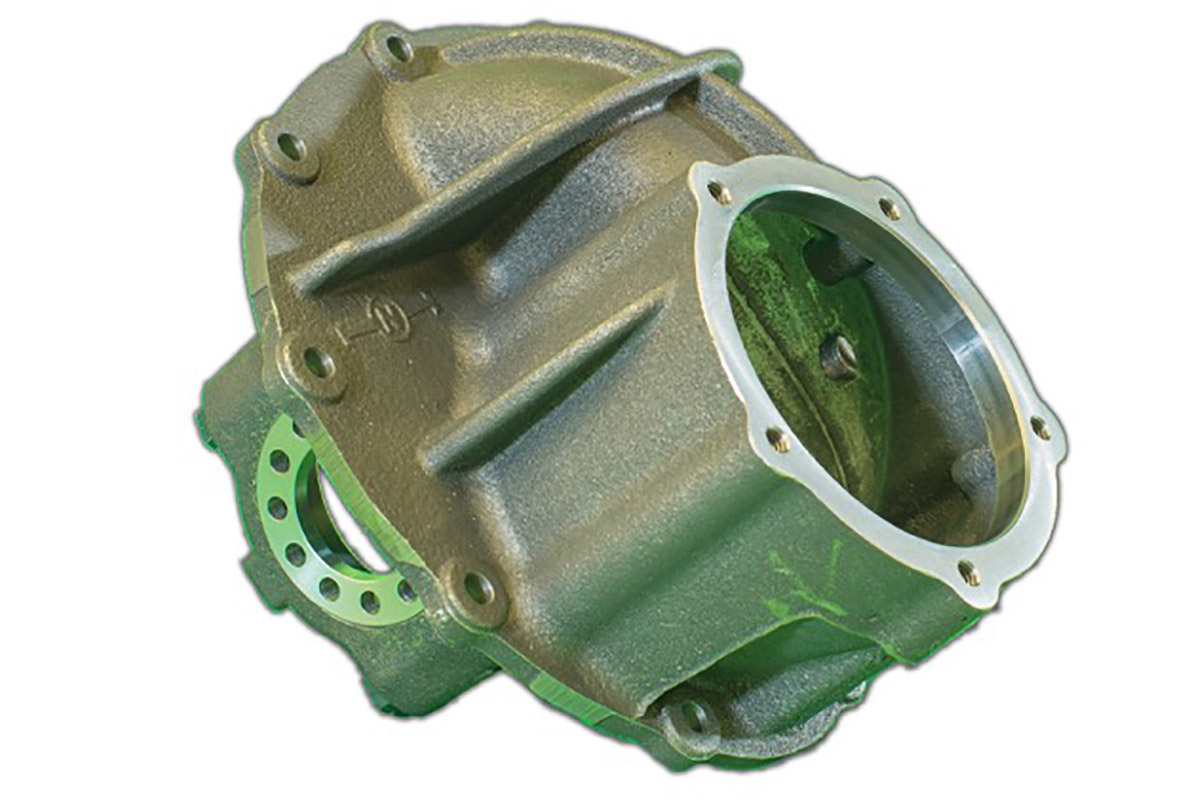

John’s Industries has just introduced their new custom, original 9-inch Nodular Iron Case that keeps OEM appearance of the Ford case but also provides a quick set-up and doubles the horsepower over its predecessor. See more details below.
John’s Industries, the “Professional Builder’s Choice”, introduces their new original, custom John’s Industries 9-inch Nodular Iron Case that retains the stock appearance of the original Ford case while providing for a quick set-up and accommodating over double the horsepower of its predecessor. Made in the USA, John’s new Nodular Iron Case becomes a top quality replacement for the popular Ford 9-inch set-up through the combined use of a stronger base material with a re-engineered design that keeps the integrity of the stock outward appearance while enhancing the capabilities of the case internally.
“The 9-inch Ford case is a very popular choice amongst racers, street rodders and muscle car enthusiasts,” said John Melchiori, owner of John’s Industries. “We strive to make products that address the growing demands of the industry and hobbyists, which are quality, affordability, and a capacity for increased performance that delivers satisfaction beyond expectation.”
The increasingly hard-to-find original stock 9-inch Ford case typically comes with signs of wear and fatigue from prior usage as indicated by rusted areas that are chipped or pitted. Additionally, the original cases were not designed to meet the demands of today’s increased horsepower. John’s 9-inch Nodular Iron Case not only looks like the original Ford case, but it was re-engineered and designed with an emphasis on increased quality – starting with its base material. A departure from the stock case’s grey iron, John’s 9-inch Nodular Iron Case also features reinforced webbing to ensure a greater resistance to impact, fatigue and overall wear.
John’s has also identified areas of the stock Ford case design that would benefit from additional reinforcements. The new case has added material in areas that were considered weak spots and prone to stress cracks in the original design. Additionally, the areas with bolt holes received an increase in thickness to ensure strength and durability. Inside of the case, the design was adjusted to provide proper clearance for gears. Designing the 9-inch Nodular Iron Case with the biggest bore offered by Ford, street rods using John’s case will experience improved performance with the stronger and lighter differential component.
- One pound lighter than the original Ford case
- Rated for up to 750 horsepower
- Available in 28 or 31 spline, or 33 spline axles
- 3.062 bore
- Available in open, Trac-Loc, Powertrax, Wavetrac, Tru Trac and full light weight spool
A complete third member assembly using the John’s Industries 9-inch Nodular Iron Case is also available. The assembly includes:
- John’s Billet Aluminum Pinion Support
- Forged Pinion Yoke (choices include: 1310, 1330S, 1330T, 1350 series)
- Available in 28, 31 or 33 spline with choice of carrier (open, Trac-Loc, Powertrax, Tru Trac, or full light weight spool)
- Gear ratio of choice
