Sorry to all you pushrod patrons, but we believe the Ford Coyote modular engine is the best powerplant Ford has ever produced. From intake manifold to oil pan, the Coyote screams efficiency. It makes more power per cubic inch than any other naturally aspirated musclecar on the market, period.
So what happens when you have an engine that’s already awesome from the factory? Well, as far as the short-block of the Coyote goes, there’s not a whole lot that can be done. Sure you can squeeze an additional 10 cubic inches out of the bottom end but it’s simply not worth the investment … unless you’re planning a full rebuild. Getting the air in and out more efficiently is really where the power lies. For this segment we teamed up with Comp Cams to see how well their new CR Series cam grinds work.
Efficiency at its Finest
There’s power to be found in Coyote cylinder head porting but removing and reinstalling the cylinder heads might be too much work for not a ton of reward. So what else is left? Really it comes down to four areas — exhaust system, air intake, intake manifold, and camshafts.
The most common first upgrades are the aforementioned. From there, you need to move to the sticks that are opening the valves longer to keep the air flowing freely. Coyote camshafts don’t come cheaply since you need four of them to complete the task. Not to mention the entire front of the engine has to be disassembled to get in there, which isn’t too bad if you have the right mechanic doing so.

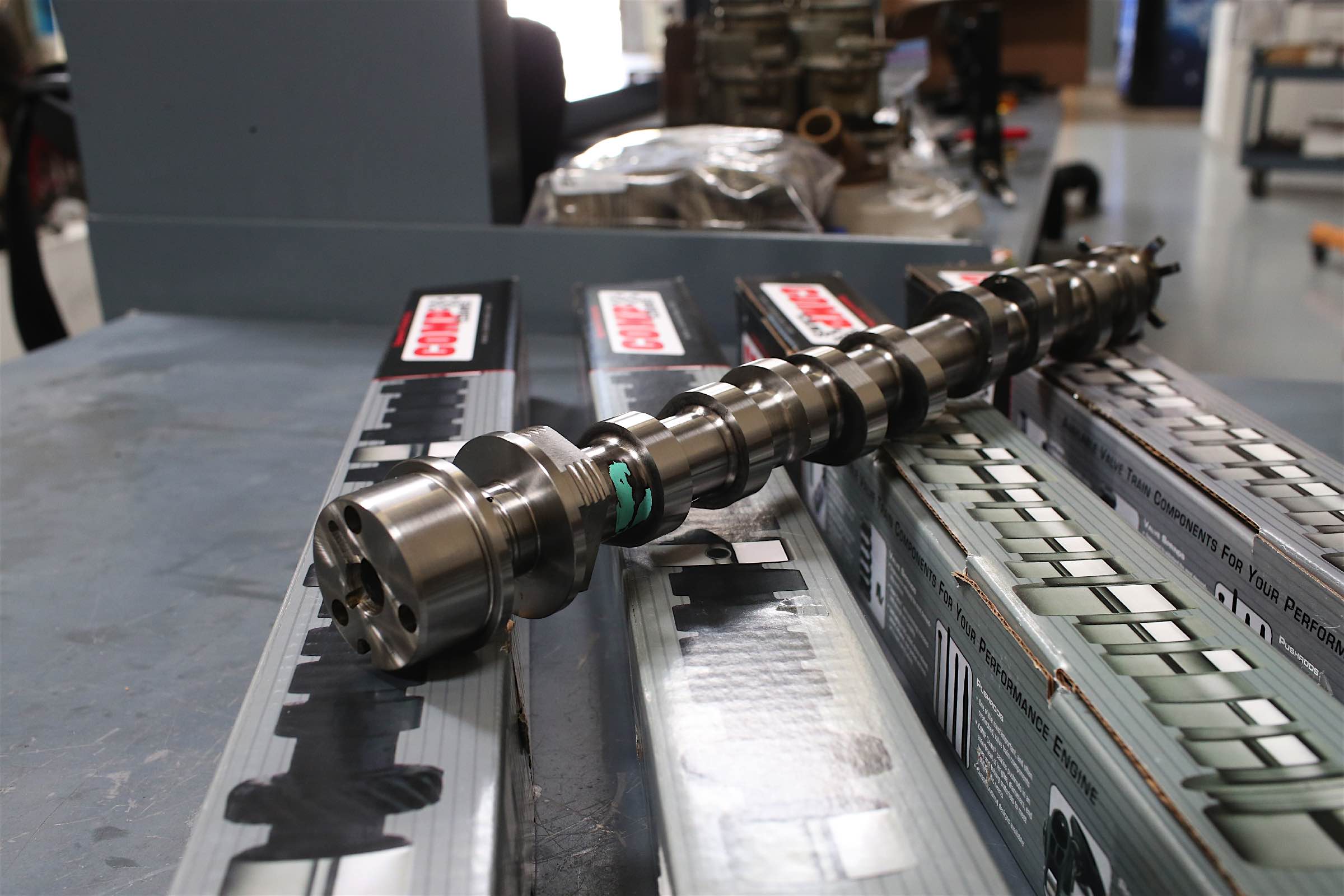

The Bump Sticks
Just like the No Springs Required (NSR) line of camshafts the CR Series line is offered in three stages for naturally aspirated and turbo engines as well as three separate grinds for blower applications.
“While we knew a tremendous amount about the camshaft itself along with the valve spring, the original NSR cam series was more based from incremental improvements from our mod profiles and the OEM cams, and was not a true clean sheet design for the new engine,” explained Godbold.
When discussing the 2015 Mustang, Goldbold mentioned, “Ford incorporated a higher load spring, like found on the Boss, with a better port, intake manifold and higher lift cams with higher accelerations. So, when we went to the drawing board on the 2015 designs, we had at least 1,000 times more data and experience toward improving our offerings, and this lead to the CR Series profiles.”

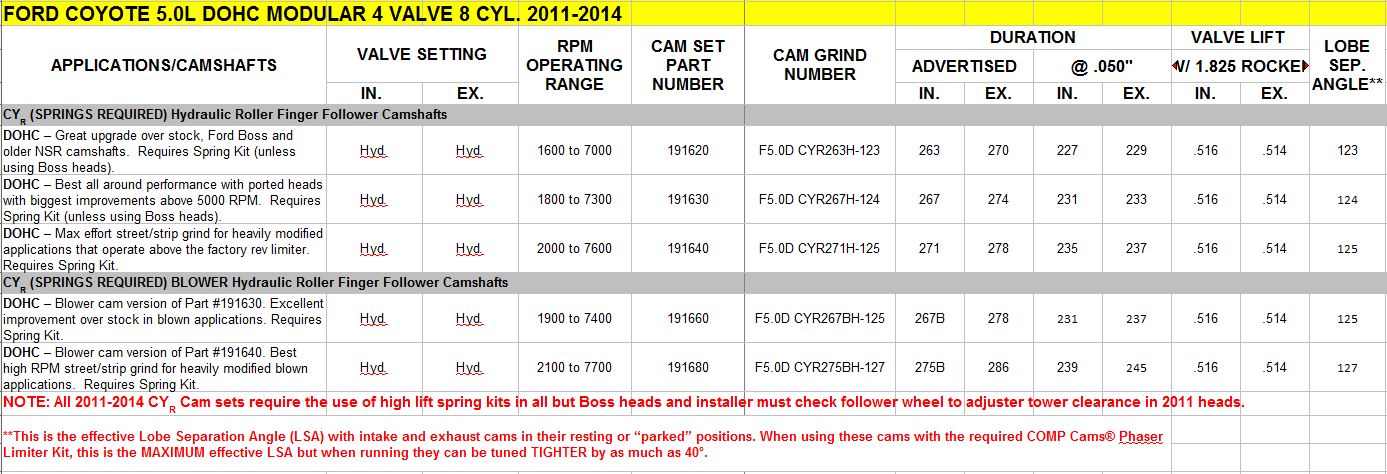

Continuing Godbold explained, “Once we had the profiles, we knew they could be used in the 2012-2014 engines (and the 2011 with a little clearance work) if someone was changing the valve springs (or cylinder heads). As these engines were starting to go out of warranty, we knew they would be a larger (and growing) market for cams that required that accompanying valve spring change. Hence, one year after introducing the CR Series grinds for the 2015+ Coyote engines, we added new designs for the 2011-2014 engines.”
When talking about how much better the CR Series grinds are, Godbold went on to explain, “To give a comparison of the type improvements available, let’s compare the 228 at 0.050 and 275 advertised duration (at .004”) NSR lobe #19556 with the 231 at 0.050” and 273 advertised duration (also at 0.004”) CR lobe #19822. The new 19556 has 2 degrees less seat timing but 5 percent greater overall area. The duration at 0.200-inch is 175 for the older design and 180 on the new CR, acting like a five degree bigger cam in the mid lift range. By 0.400-inch valve lift, the difference is over eight degrees more duration with the CR profile. Hence, with the ported heads that are still climbing on flow at 0.400,” the new CR has close to 10% more time in this lift range.

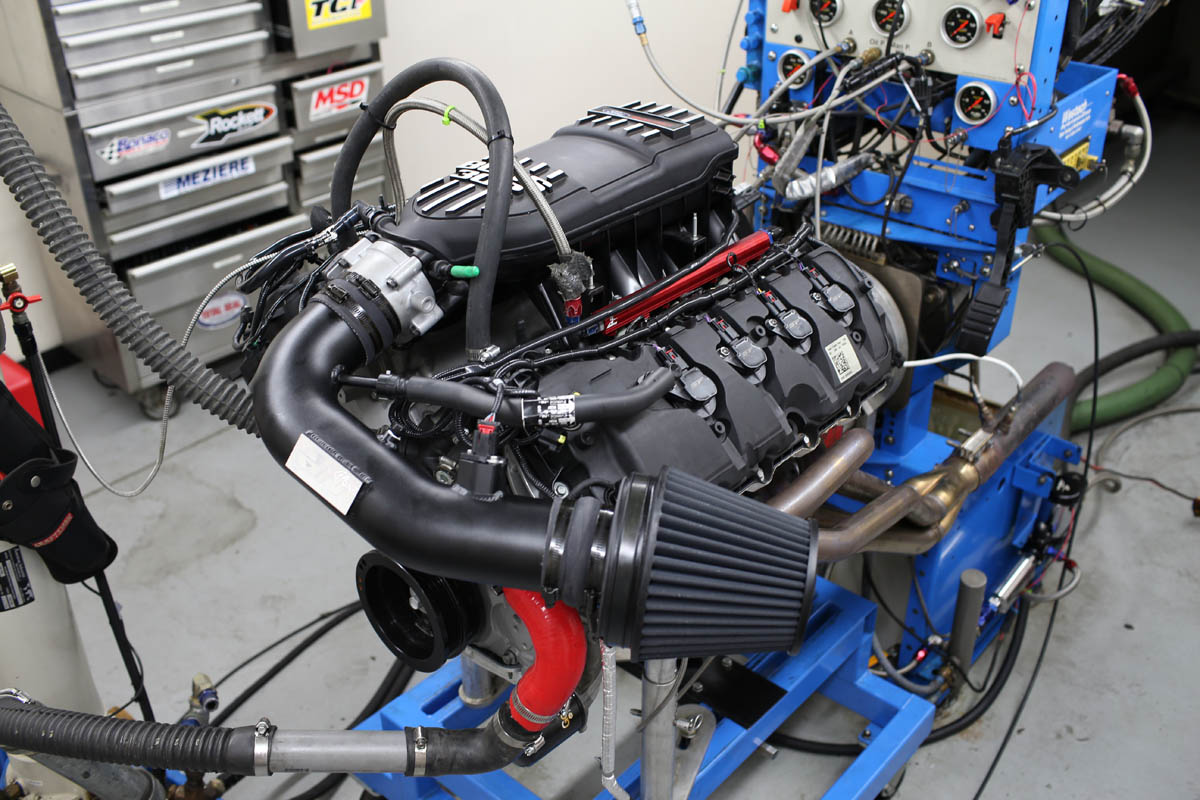

Our Test Mule
When we were specing out the camshafts for our $9,999 budget Coyote build we originally selected Comp Cams’ NSR line of camshafts, but as Comp began producing the CR grind, we knew we had to have them.
Our Coyote started life as an F150 takeout engine that was completely rebuilt. The short-block consists of the factory crank with Manley rods and pistons. Compression is 11:1 while a slight overbore to clean up the bores puts the cubic inches right around 304. The cylinder heads are stock sans the Comp Cams required valve springs and tool steel retainers (PN 26113CY-KIT). One thing about the CR line for the 2011-14 Coyotes is that valve springs are required. This was fine because we didn’t want to run the warn out, stock F150 springs anyway.
“It really has everything to do with the heads and springs. If you are willing to change the valve springs, you know you will get better performance with the CR Series,” explained Godbold. ” If you are going to a Boss or ported cylinder head, then it is a pretty clear choice as the CR will absolutely take full advantage of the high lift flow improvements.”

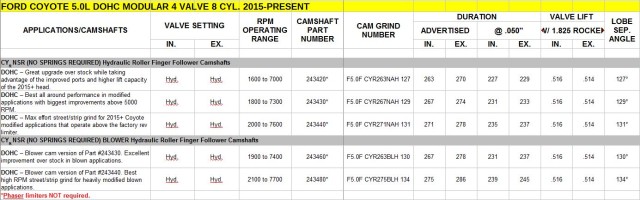

For those of you that are installing these camshafts on a 2015 Mustang GT, new valve springs aren’t needed due to the increased factory lift and lobe profile. “On the 2015, there was no “good” way to limit the phaser from the mid-lock,” said Godbold. “Hence we spread the centers out father. The good here is that there are less parts to purchase. The bad is that the phaser tables will need more refinement to find the peak power settings.”
For tuning tips, Godbold shares, “I generally set the exhaust somewhere around 114 ECL then run a chassis dyno pull with the intakes at full advance. Then I back up the intake four degrees (two cam) at a time running sweeps then making a map based on RPM where each setting runs best. Once you have the intake map you can start moving the exhaust either way. This is basically the same general process as we would recommend on the earlier application, but the change in the best tuning will be much closer for the 2011-2014 to OEM than you would see with the 2015+.”
For the induction side of the motor we had tested a variety of intake manifolds but settled with the middle ground BOSS 302 for this test.

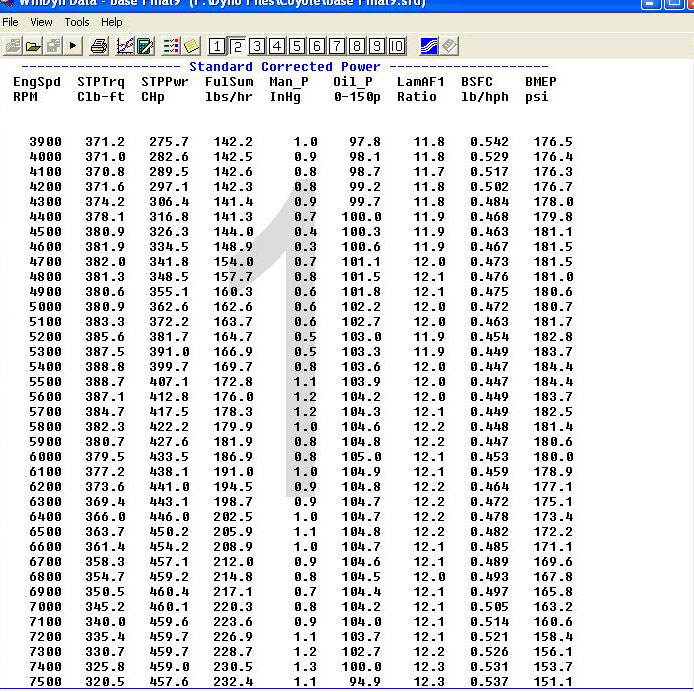

Our Coyote is a fairly mild, street friendly rebuild. You can learn about the LS3 versus Coyote build off here and the Coyote engine build story here. In summary, the former F150 takeout engine features a stock forged crankshaft, Manley H-Beam rods, Manley 11:1 pistons, Boss 302 intake manifold, Ford Performance controls pack, stock cylinder heads with the aforementioned Comp valve spring kit, and Mustang GT camshafts.
When dealing with the factory camshafts there’s a total of 50 degrees of movement that you can play around with to precisely tune the engine’s power curve. “Generally when the factory cams are installed, we have to fully advance the intake camshafts in order to make midrange power, with very little retarding of the camshafts at high RPM,” explains Ryne Cunningham of Cunningham Motorsports.

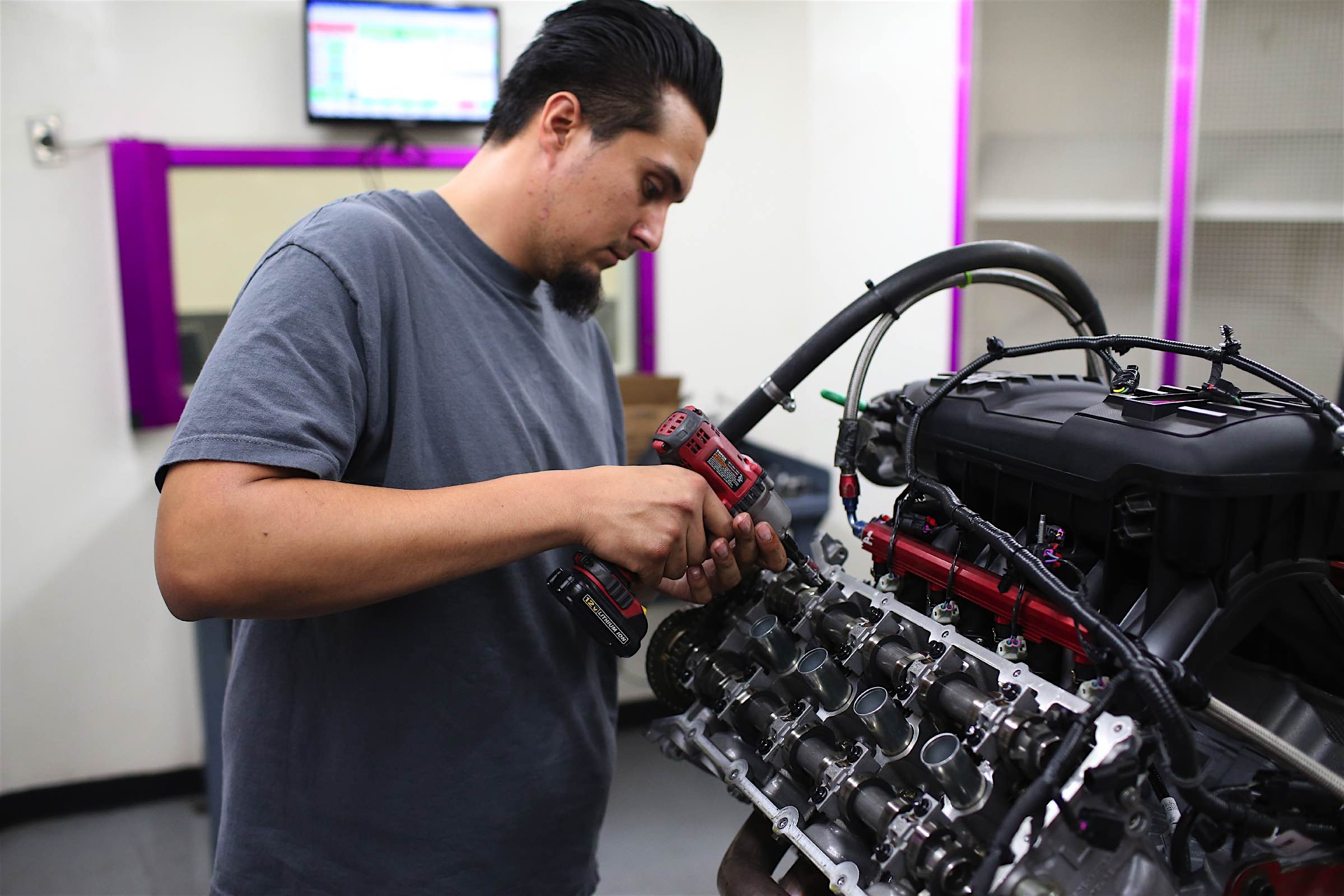

Installing camshafts on a Coyote is a hell of a lot easier to do on an engine dyno than in the car, though a seasoned installer can perform a cam swap in about three to four hours. Double that when it comes to replacing 32 valve springs on the engine.

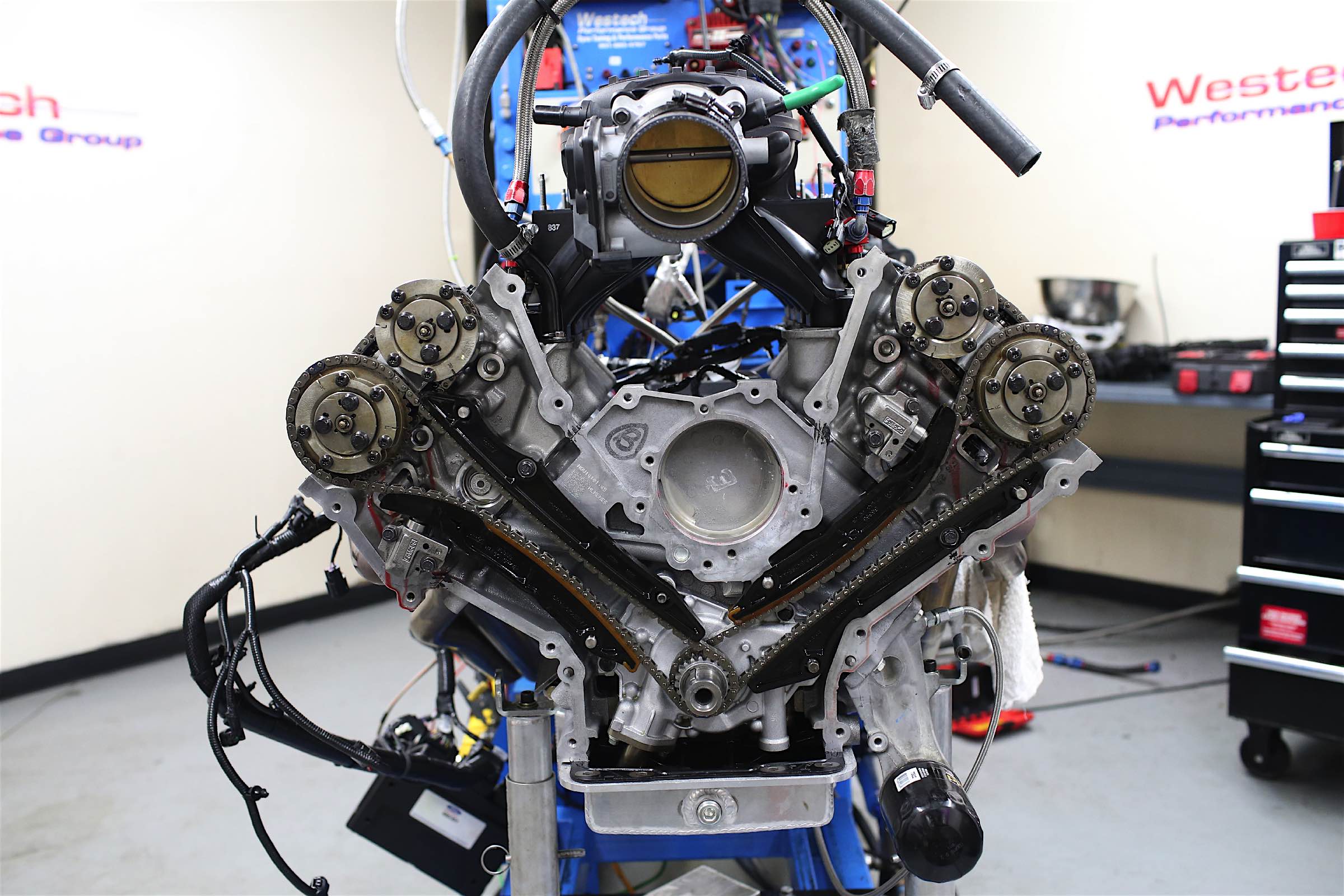

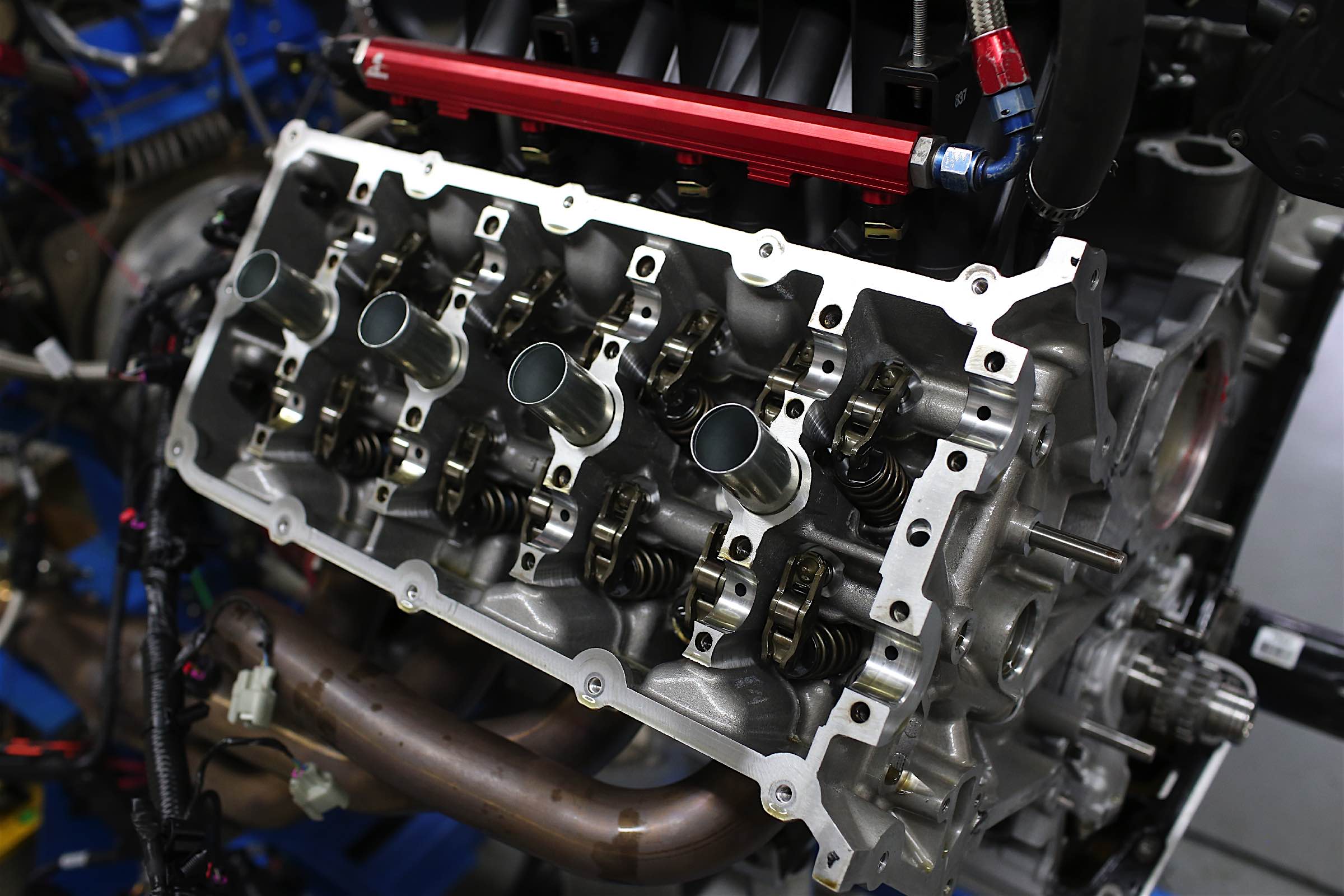

Once the accessories, valve covers, balancer, and front cover are removed, next remove the two primary tensioners. Don’t worry about timing the engine as the primary chains are removed because you will line the paint marks on the links up later. With the long primary chains removed, remove the three bolts on the front of each phaser, pulling both the intake and exhaust phasers off together. At this point you can begin to remove the cam caps but make sure you keep them in order since they are directional.
Remove the front cover off each of the phaser, keeping in mind that there’s a spring that will need to be reinstalled behind the plate. Drop in the limiters and re torque the front cover plate bolts. Now it’s a matter of reversing everything to install the new Comp camshafts.
Making Power On Four Cams
Before firing the engine back up you must adjust the tune for the limited camshafts. It won’t hurt anything, you might experience a check engine light if you don’t. “Because you must run phaser limiters with Comp camshafts, you must address several tables related to max cam phasing,” explains Cunningham. “You must set them to the correct value (20 degrees) otherwise check engine codes will be set. In addition in street applications, you must limit camshaft movement off idle, otherwise it can cause a stumble upon take off.”
Best Coyote Internal Engine Modification?

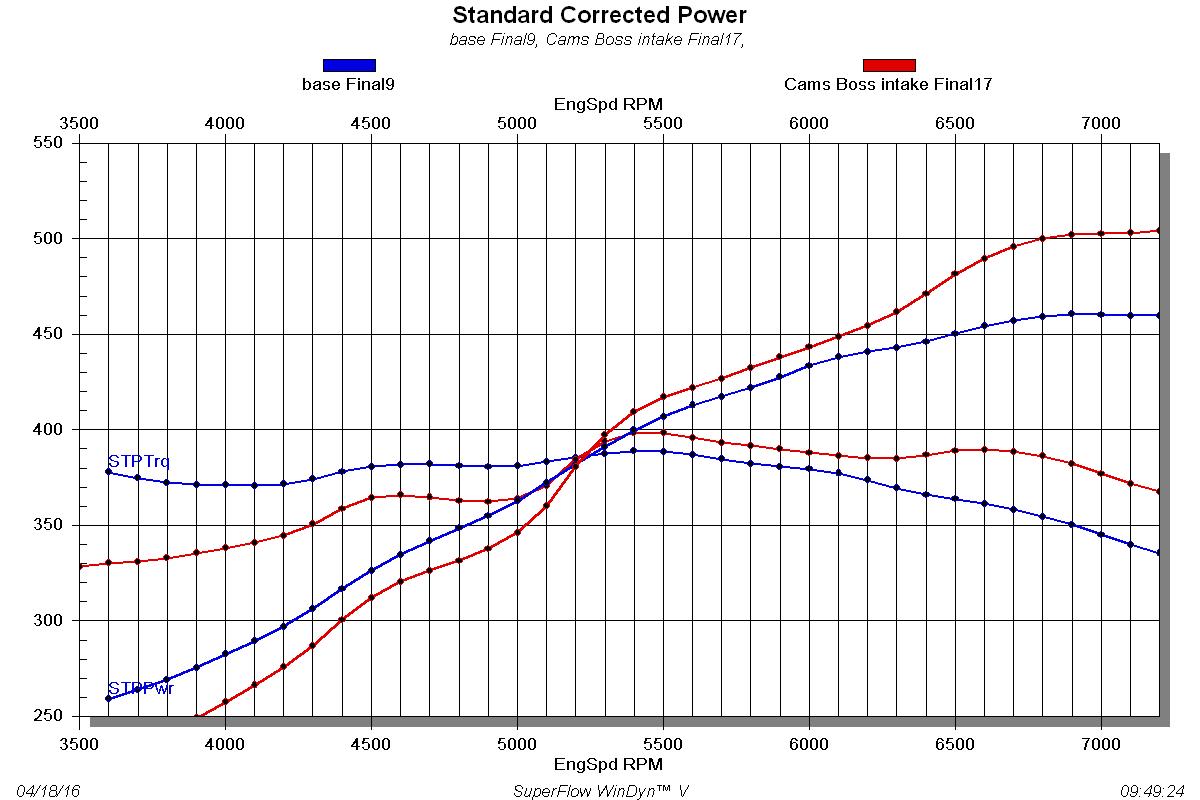

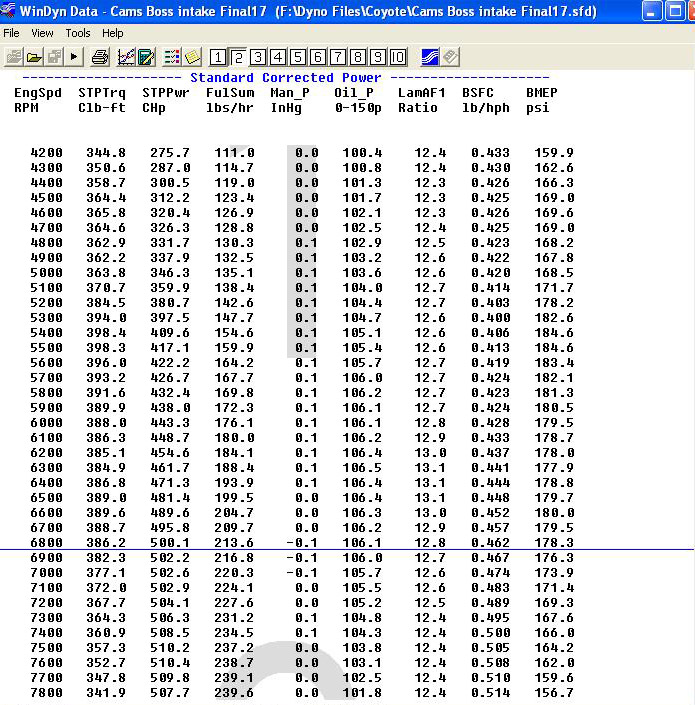

While installing camshafts in a Coyote isn’t for the faint of heart, it’s also not overly complicated. Having an engine that doesn’t need to be degreed makes installing camshaft upgrades in Coyotes fairly straight forward. In a matter of two hours we were able to pick up 50 horsepower to the crank while pushing our peak power up 700 rpm. We have to say that we are more than happy with what we achieved from our day on the dyno!
